Heat Resistant Conveyor Belt
High-modulus, low-shrinkage polyester fabric with heat-resistant SBR, EPDM or chlorobutyl rubber cover. Operates continuously below 180°C and withstands short-term temperatures up to 250°C.
Key Features
- Grades: T1 (≤100°C), T2 (≤150°C), T3 (≤180°C), T4 (≤250°C)
- Tensile Strength: 500-3200 N/mm
- Belt Width: 500-2400mm
- Layers: 2-10 plies
- Cover Thickness: 3-10mm (top), 1.5-3mm (bottom)
- Working Temperature: -20°C to +250°C (short-term)
- Continuous Operation: up to 180°C
- Cover Compound: SBR / EPDM / Chlorobutyl
Standards
GB/T20021-2005, DIN22102, AS1332
Applications
Metallurgy, steel plants, cement plants, glass manufacturing, ceramic industry
Related Products
Cotton Conveyor Belt
Tensile reinforcement formed by interweaving warp-direction polyester-cotton blended fibers with weft-direction cotton fibers. Thin, lightweight, improved impact resistance, saves energy and reduces consumption.
Nylon (NN) Conveyor Belt
Nylon fibers woven in both warp and weft directions. Excellent abrasion resistance, high strength, good fatigue resistance, thin belt body, strong adhesion between plies and outstanding flexibility.

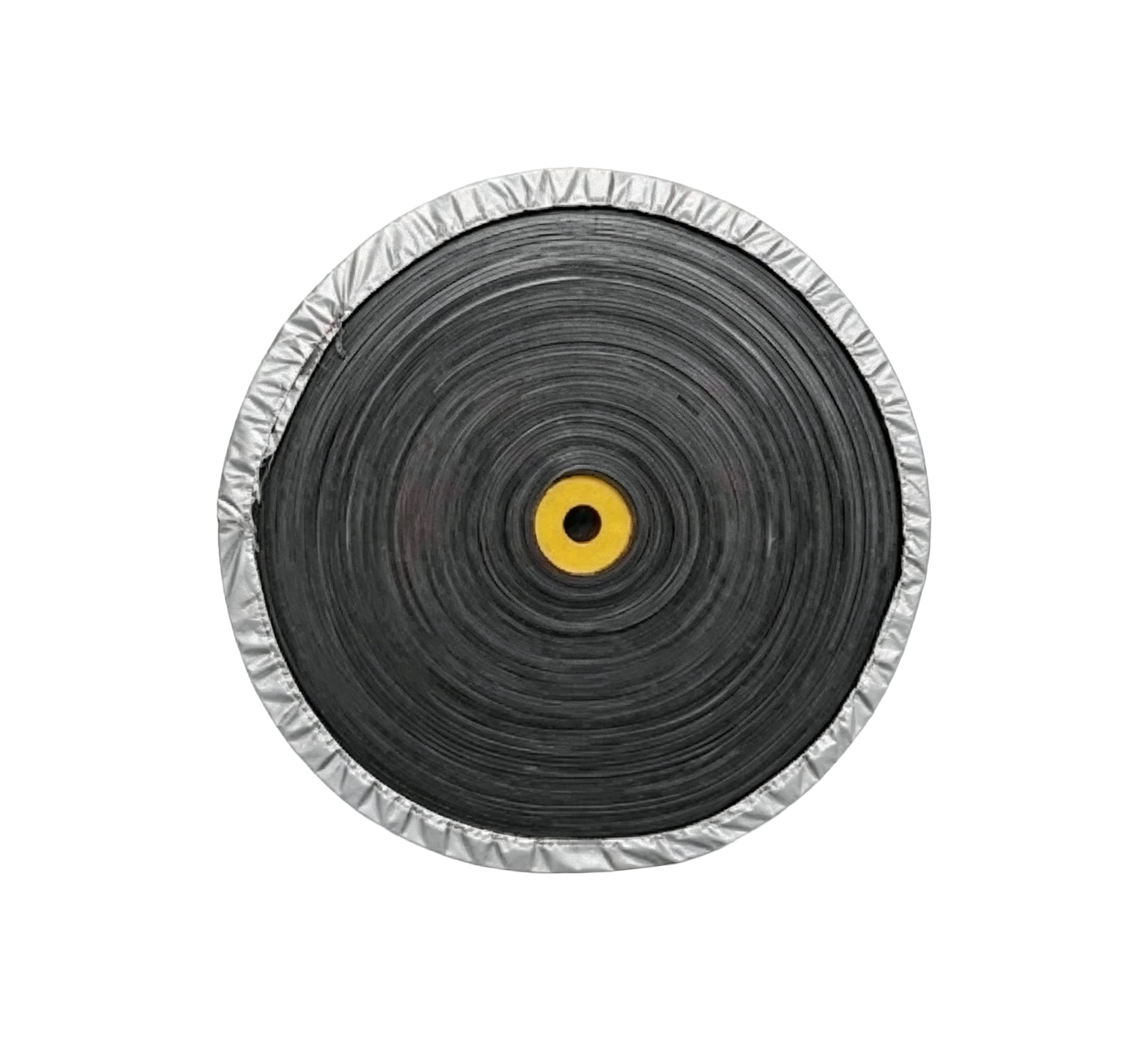

EP (Polyester) Conveyor Belt
Polyester fabric in warp direction and nylon in weft direction. Low elongation, excellent troughability, good water resistance and mildew resistance. High initial modulus allows lower safety factor.
