Our Products

Cotton Conveyor Belt

Tensile reinforcement formed by interweaving warp-direction polyester-cotton blended fibers with weft-direction cotton fibers. Thin, lightweight, improved impact resistance, saves energy and reduces consumption.

• Grades: CC-56, CC-80, CC-100, CC-120, CC-140, CC-160, CC-200
• Tensile Strength: 200-800 N/mm
• Belt Width: 500-3200mm
• Layers: 2-8 plies
• Cover Thickness: 3-6mm (top), 1.5-3mm (bottom)
• Working Temperature: -20°C to +60°C
• Thin & lightweight design, energy-saving
• Elongation at Break: ≤15%

Applications: Light to medium duty conveying, grain & food processing, packaging lines, agriculture, warehouse logistics, light mining operations, sand & gravel handling, recycling facilities, textile industry, paper mills, light chemical handling, general manufacturing

Heat Resistant Conveyor Belt

High-modulus, low-shrinkage polyester fabric with heat-resistant SBR, EPDM or chlorobutyl rubber cover. Operates continuously below 180°C and withstands short-term temperatures up to 250°C.

• Grades: T1 (≤100°C), T2 (≤150°C), T3 (≤180°C), T4 (≤250°C)
• Tensile Strength: 500-3200 N/mm
• Belt Width: 500-2400mm
• Layers: 2-10 plies
• Cover Thickness: 3-10mm (top), 1.5-3mm (bottom)
• Working Temperature: -20°C to +250°C (short-term)
• Continuous Operation: up to 180°C
• Cover Compound: SBR / EPDM / Chlorobutyl

Standard: GB/T20021-2005, DIN22102, AS1332

Applications: Metallurgy, steel plants, cement plants, glass manufacturing, ceramic industry

Nylon (NN) Conveyor Belt

Nylon fibers woven in both warp and weft directions. Excellent abrasion resistance, high strength, good fatigue resistance, thin belt body, strong adhesion between plies and outstanding flexibility.

• Grades: NN100—NN400
• Tensile Strength: 500-3200 N/mm
• Belt Width: 500-2400mm
• Layers: 2-10 plies
• Cover Thickness: 3-8mm (top), 1.5-3mm (bottom)
• Working Temperature: -20°C to +80°C
• Elongation at Break: ≤15%
• Ply Adhesion: ≥3.5 N/mm

Standard: GB/T7984-2001, DIN22102, RMA, AS, JIS, SABS

Applications: Coal mining, quarrying, aggregate handling, cement plants, power plants, steel plants, port terminals, grain handling, wood processing, recycling facilities, construction sites

EP (Polyester) Conveyor Belt

Polyester fabric in warp direction and nylon in weft direction. Low elongation, excellent troughability, good water resistance and mildew resistance. High initial modulus allows lower safety factor.

• Grades: EP100, EP150, EP200, EP250, EP300, EP400, EP500
• Tensile Strength: 500-3200 N/mm
• Belt Width: 500-2400mm
• Layers: 2-10 plies
• Cover Thickness: 3-8mm (top), 1.5-3mm (bottom)
• Working Temperature: -20°C to +80°C
• Elongation at Break: ≤4%
• Ply Adhesion: ≥3.5 N/mm

Standard: GB/T7984, DIN22102, RMA, AS, JIS, SABS

Applications: Metallurgy, steel plants, building materials, energy, chemical, ports, cement plants, aggregate handling, coal conveying, grain transport, mining operations

Steel Cord Conveyor Belt

Steel cords as reinforcement with rubber cover. High tensile strength, excellent impact resistance, low elongation, good troughability. Suitable for long-distance, high-capacity, high-speed conveying.

• Grades: St630—St7500
• Tensile Strength: 630-7500 N/mm
• Belt Width: 500-2400mm
• Cover Thickness: 5-15mm (top), 3-8mm (bottom)
• Working Temperature: -30°C to +80°C
• Minimum Pulley Diameter: 800-1600mm (depending on grade)
• Elongation at Break: ≤0.2%
• Steel Cord Diameter: 2.0-8.1mm
• X-Ray inspection available for quality control

Standard: GB/T9770, DIN22131, EN ISO 15236, SANS1366, AS1333

Applications: Coal mining, iron ore mining, bauxite mining, copper mining, port terminals, cement plants, steel plants, overland conveying systems, ship loading/unloading facilities, tunnel boring operations

Solid Woven (PVC/PVG) Belt

Flame-retardant solid woven belts for coal mines. Flexible belt body, high tensile strength, low elongation, excellent abrasion and tear resistance. Self-extinguishing properties with good anti-static performance.

• Tensile Strength: 680-3000 N/mm
• Belt Width: 500-2000mm
• Cover Thickness: 1.5-5mm (top), 1-3mm (bottom)
• Working Temperature: -20°C to +60°C
• Flame Retardant: MT914-2008 (self-extinguishing within 10 seconds)
• Anti-static: Surface resistance ≤3×10⁸ Ω
• Ply Adhesion: ≥3.0 N/mm
• Elongation at Break: ≤15%

Standard: MT914-2008, MT668-2008, BS3289, AS1332

Applications: Coal minin, tunnel construction, underground metal mines, chemical industry, power plants, grain storage facilities, waste-to-energy plants, foundries, cement plants, ports

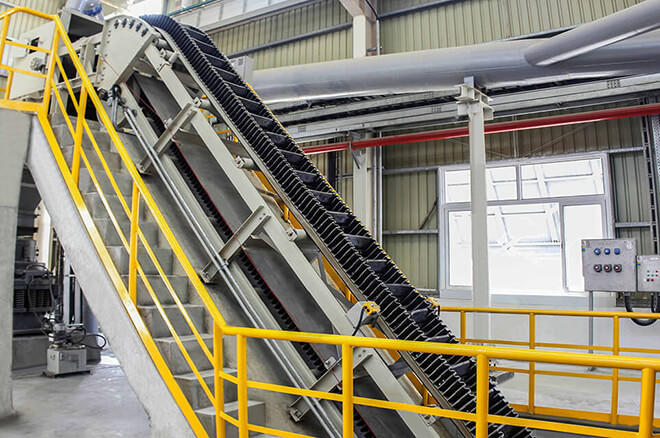

Sidewall Conveyor Belt

Base belt with corrugated sidewalls and cleats bonded through secondary vulcanization. Conveying angle from 30° to 90°. Small footprint, large capacity, high lifting height.

• Conveying angle: 30°-90°
• Small footprint design
• High lifting capacity

Standard: DIN22102, GB/T20021

Applications: Ports, metallurgy, mining, power, coal, foundries, building materials, grain, chemical

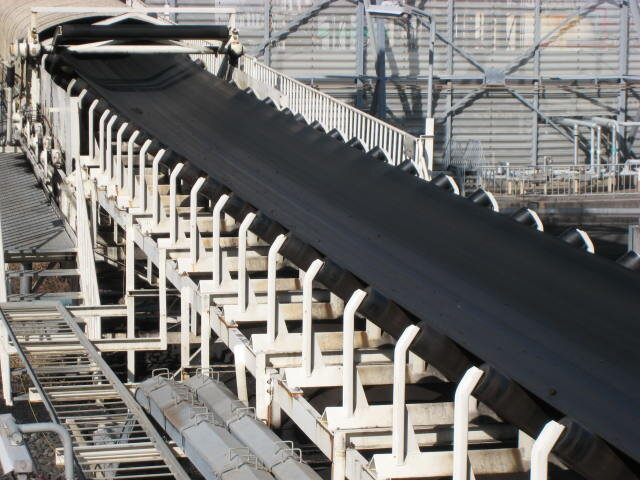

Oil Resistant Conveyor Belt

Specially formulated for conveying oily materials and operating in oily environments. Cover rubber maintains performance after aging test at 70°C for 168 hours.

• LO & D0 types available
• Tensile: ≥12-14 MPa
• Oil-resistant compound

Applications: Metallurgy, steel, building materials, energy, chemical, ports

Chevron Conveyor Belt

Base belt with patterned profiles (U, V, A shapes). Can convey powdered, granulated and small lump materials at gradients up to 40 degrees. Also suitable for packaged materials.

• Width: 300-1800mm
• Pattern Height: 5-30mm
• 3-10 layers available

Applications: Powder, granules, small lumps, packaged materials at inclines up to 40°

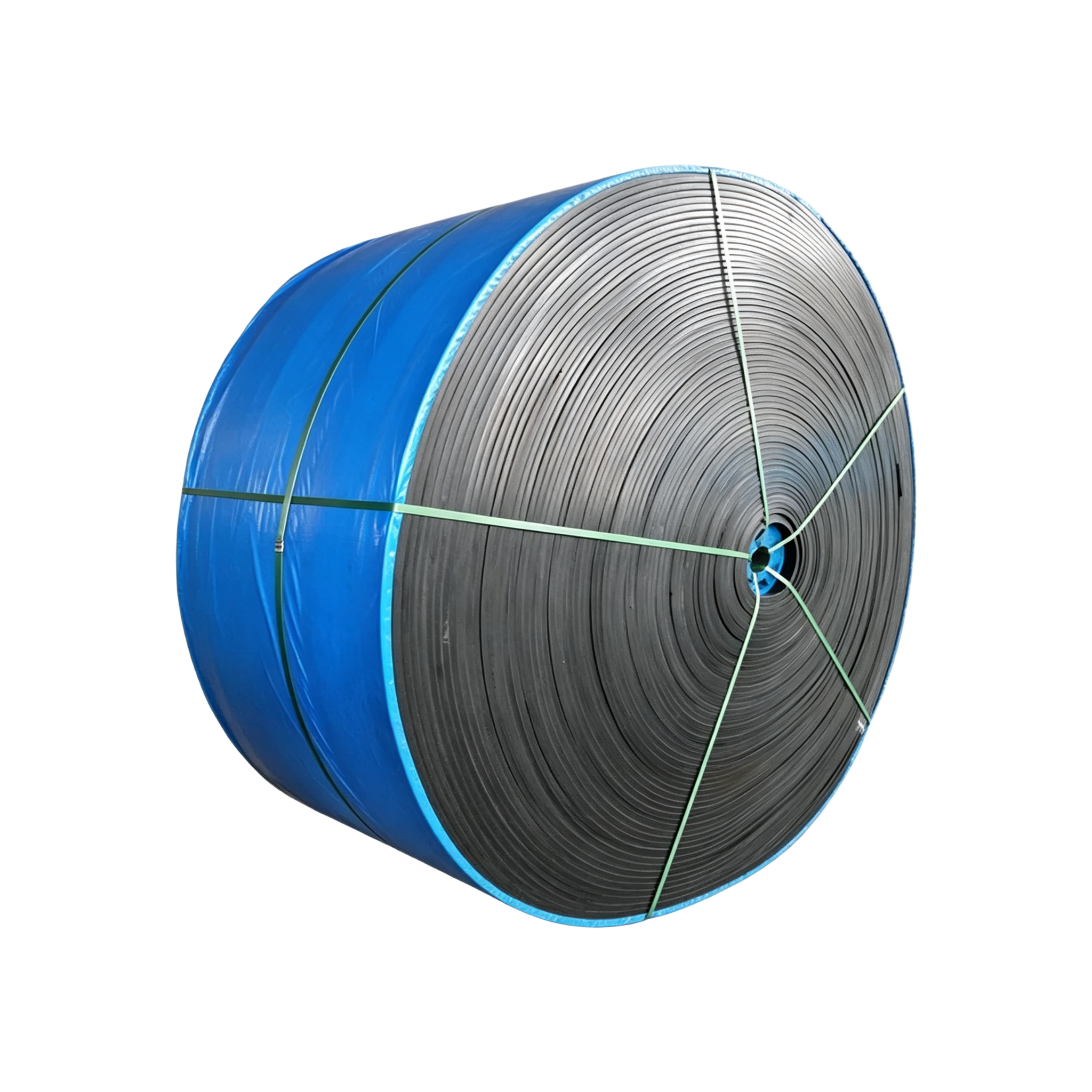

Acid & Alkali Resistant Belt

Belt core of cotton, nylon or polyester canvas with acid- and alkali-resistant cover rubber. Good flexibility, excellent troughability, low elongation, resistant to chemical corrosion.

• Tensile: ≥12 MPa
• Elongation: ≥400%
• Acid resistance: ≥0.8

Standard: HG/T 3782-2005

Applications: Chemical plants, fertilizer plants, paper mills

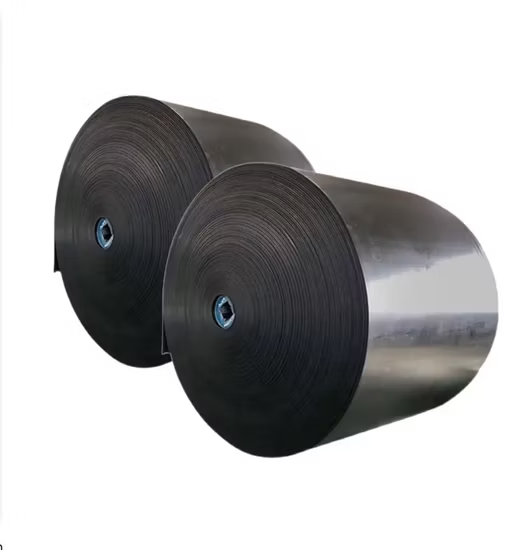

Light Conveyor Belt

Specially treated polyester fabric coated with rubber, PVC, PU or PE. High strength, low elongation, good flexibility, wide operating temperature range, stable operation.

• Tensile: 500-3000 N/mm
• Belt Width: 500-2400mm
• Multiple coating options

Applications: Food, tobacco, electronics, printing, packaging, textiles, chemicals, building materials

Carrying Idler

Advanced technology with well-designed structure. Minimizes radial runout, noise and energy consumption while providing high load capacity. Includes troughing, flat, impact, guide, friction, tapered, spiral and comb rollers.

• Waterproof & dustproof design
• Service life: up to 25,000 hours
• C&U bearings with German sealing

Applications: Mining, power generation, metallurgy, chemical, grain, construction, ports

Centering Idler

Self-aligning rollers for correcting belt misalignment. Advanced structure, sensitive and reliable operation, excellent tracking performance. Prevents and corrects belt misalignment, reduces material spillage.

• Self-aligning design
• Sensitive tracking
• Easy installation

Applications: Mining, power generation, metallurgy, chemical, grain, construction, ports

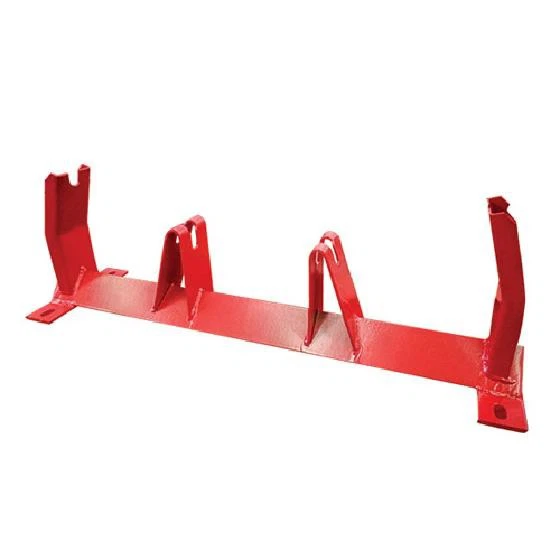

Idler Bracket

Effective solution for correcting conveyor belt misalignment during operation. Advanced structure, sensitive and reliable operation, excellent belt tracking performance.

• Advanced structure
• Reliable tracking
• Reduces material spillage

Applications: Mining, power, metallurgy, chemical, grain, construction, ports

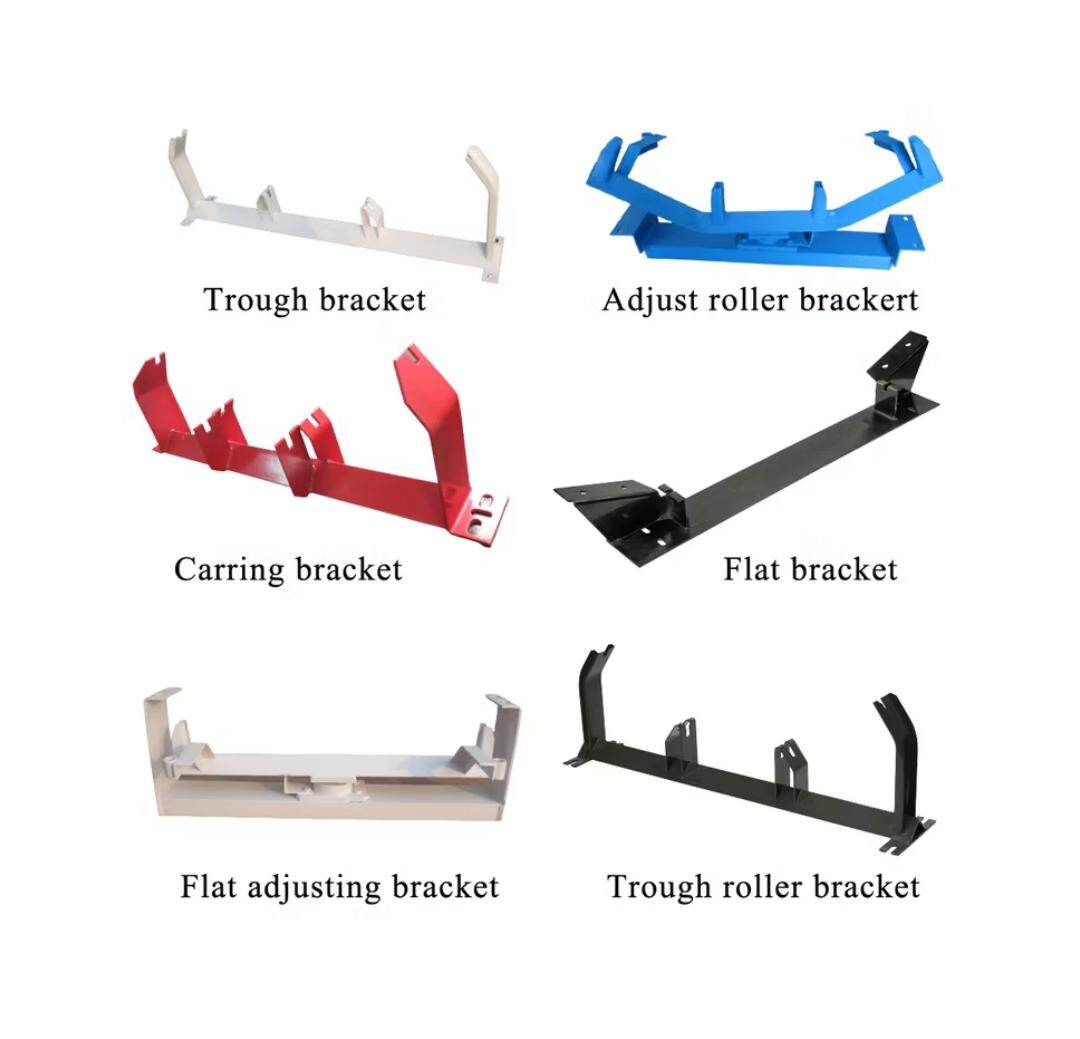

Centering Bracket

Simple structure with excellent belt tracking performance. Effectively improves correction of belt misalignment, reduces damage to belt edges, extends belt service life.

• Simple structure
• Strong support
• Long service life

Applications: Mining, power, metallurgy, chemical, grain, construction, ports

Drive Pulley

Main component for transmitting power. Available in light, medium and heavy-duty categories. Surface treatment options: smooth steel, herringbone or rhombic rubber lagging.

• Light/Medium/Heavy duty
• Multiple surface options
• Grease cup lubrication

Applications: All conveyor systems requiring power transmission

Bend Pulley

Changes conveyor belt direction, increases wrap angle around drive pulley, guides belt in take-up system. Compact structure, light weight, reliable performance in harsh conditions.

• Compact structure
• Light weight
• Works in dust/moisture/mud

Applications: Conveyor end direction change, take-up systems

Rubber Lagged Pulley

Spiral grooves machined on pulley surface before rubber lagging for good concentricity. Increases friction between pulley and belt. 5-10 years maintenance-free operation.

• Spiral groove design
• Strong rubber bonding
• 5-10 years maintenance-free

Applications: Important conveyor applications requiring high friction

Motorized Pulley

Compact structure, high transmission efficiency, low noise, long service life. Good sealing performance, small installation space. Suitable for harsh environments with moisture, mud and heavy dust.

• Integrated motor design
• High efficiency
• Sealed for harsh environments

Applications: Space-constrained installations, harsh working environments

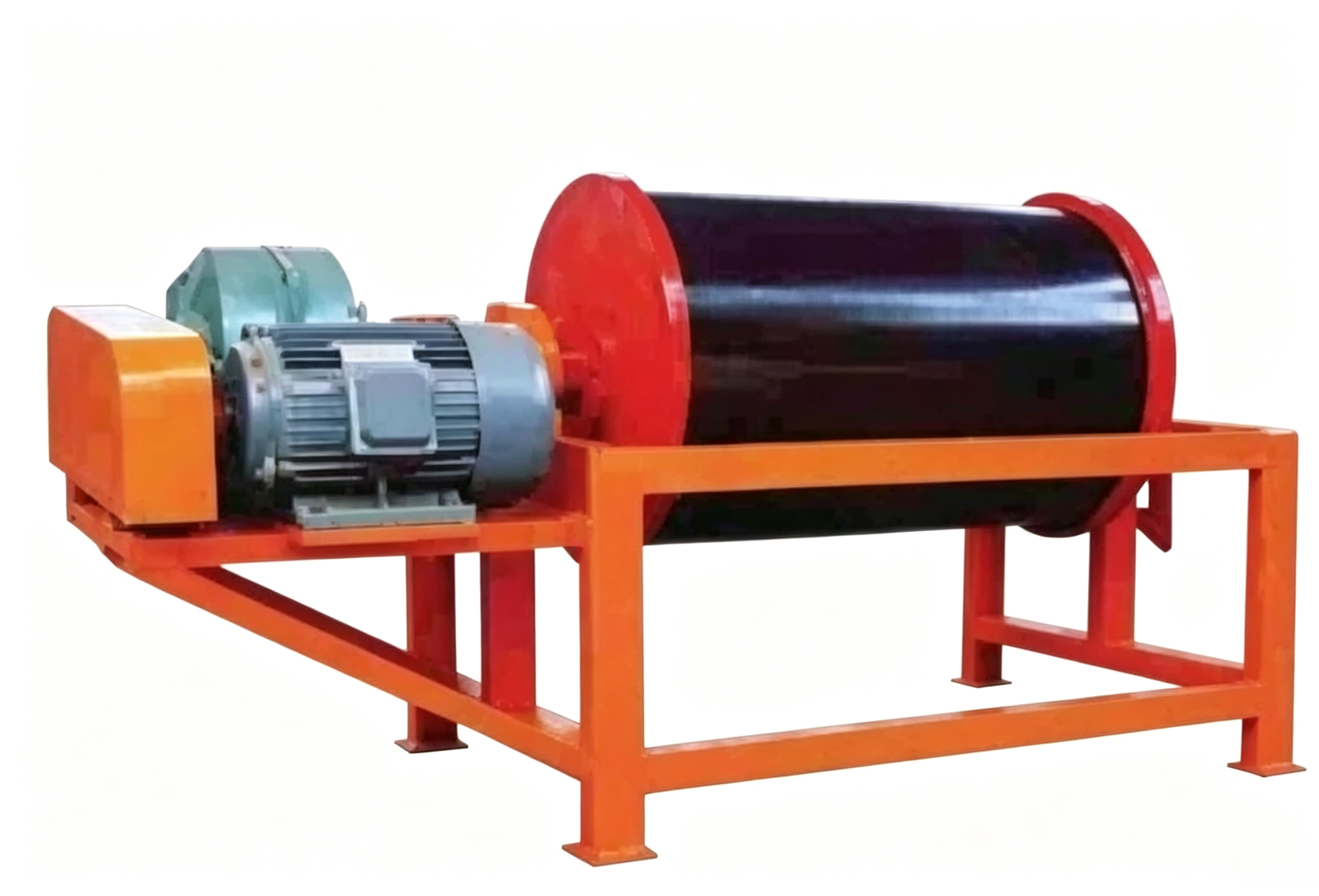

Magnetic Drum Separator

High-quality stainless steel tubes with neodymium iron boron rare-earth magnets. Removes ferromagnetic impurities from powder, flakes and granular materials. Automatic separation.

• Rare-earth magnets
• Stainless steel construction
• Automatic separation

Applications: Ceramics, power, mining, plastics, chemicals, rubber, pharmaceuticals, food, electronics

Buffer Roller Pallet Bed

Installed between conveyor rollers for continuous belt support. Prevents belt vibration, improves sealing between belt and skirt board. UHMW-PE support bars with low friction and excellent wear resistance.

• UHMW-PE support bars
• Double-sided design
• Reduces dust leakage

Applications: Loading zones, transfer points, dust-sensitive environments

Buffer Bed

Impact absorption system installed at material loading and transfer points. Protects conveyor belt from damage caused by impact of falling materials.

• Impact absorption
• Belt protection
• Modular design

Applications: Loading zones, transfer points, impact-prone areas

Belt Sweeper

Cleans conveyor belt surface to prevent material carryback. Maintains clean belt surface, reduces material waste and improves operational efficiency.

• Effective cleaning
• Reduces carryback
• Easy maintenance

Applications: All conveyor systems requiring belt cleaning
