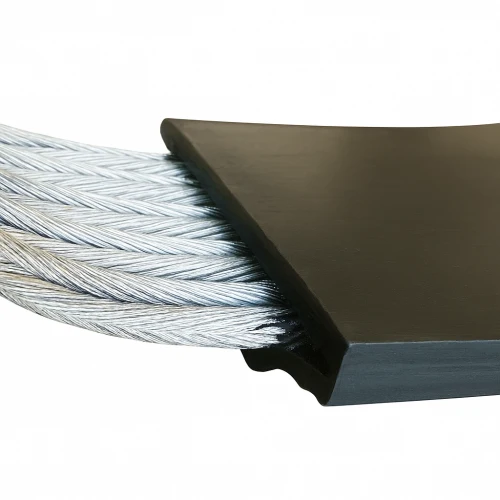

Steel Cord Conveyor Belt
Steel cords as reinforcement with rubber cover. High tensile strength, excellent impact resistance, low elongation, good troughability. Suitable for long-distance, high-capacity, high-speed conveying.
Key Features
- Grades: St630—St7500
- Tensile Strength: 630-7500 N/mm
- Belt Width: 500-2400mm
- Cover Thickness: 5-15mm (top), 3-8mm (bottom)
- Working Temperature: -30°C to +80°C
- Minimum Pulley Diameter: 800-1600mm (depending on grade)
- Elongation at Break: ≤0.2%
- Steel Cord Diameter: 2.0-8.1mm
- X-Ray inspection available for quality control
Standards
GB/T9770, DIN22131, EN ISO 15236, SANS1366, AS1333
Applications
Coal mining, iron ore mining, bauxite mining, copper mining, port terminals, cement plants, steel plants, overland conveying systems, ship loading/unloading facilities, tunnel boring operations
Related Products
Cotton Conveyor Belt
Tensile reinforcement formed by interweaving warp-direction polyester-cotton blended fibers with weft-direction cotton fibers. Thin, lightweight, improved impact resistance, saves energy and reduces consumption.
Heat Resistant Conveyor Belt
High-modulus, low-shrinkage polyester fabric with heat-resistant SBR, EPDM or chlorobutyl rubber cover. Operates continuously below 180°C and withstands short-term temperatures up to 250°C.
Nylon (NN) Conveyor Belt
Nylon fibers woven in both warp and weft directions. Excellent abrasion resistance, high strength, good fatigue resistance, thin belt body, strong adhesion between plies and outstanding flexibility.
