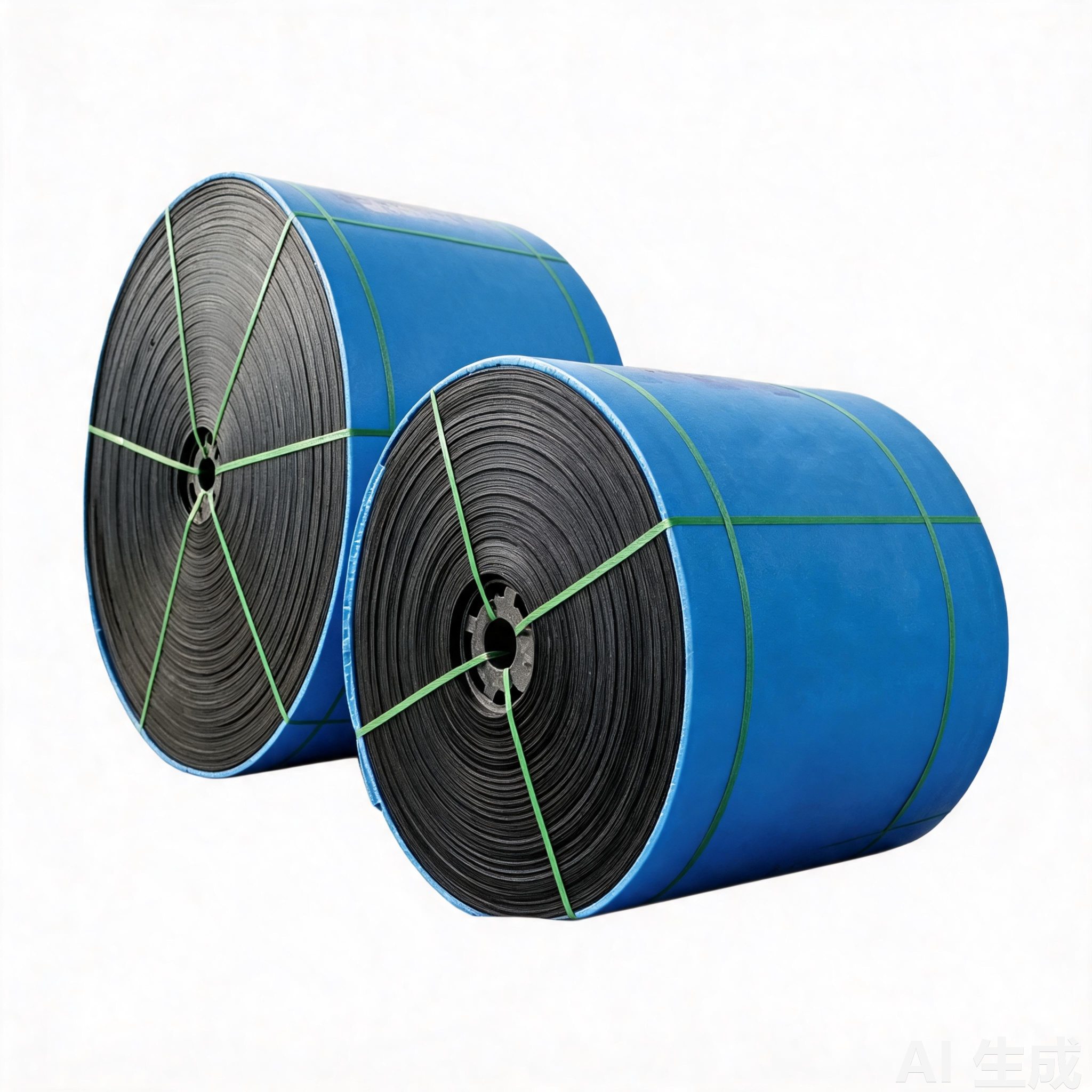

Solid Woven (PVC/PVG) Belt
Flame-retardant solid woven belts for coal mines. Flexible belt body, high tensile strength, low elongation, excellent abrasion and tear resistance. Self-extinguishing properties with good anti-static performance.
Key Features
- Tensile Strength: 680-3000 N/mm
- Belt Width: 500-2000mm
- Cover Thickness: 1.5-5mm (top), 1-3mm (bottom)
- Working Temperature: -20°C to +60°C
- Flame Retardant: MT914-2008 (self-extinguishing within 10 seconds)
- Anti-static: Surface resistance ≤3×10⁸ Ω
- Ply Adhesion: ≥3.0 N/mm
- Elongation at Break: ≤15%
Standards
MT914-2008, MT668-2008, BS3289, AS1332
Applications
Coal minin, tunnel construction, underground metal mines, chemical industry, power plants, grain storage facilities, waste-to-energy plants, foundries, cement plants, ports
